Warrior 5500 Watt Silent Diesel Three Phase Generator with Electric and Remote Start – LD G6500SV3WRC Cheap

68 dBA at 7m

3 in 1 Intelli Volt Meter

Remote start

This new and improved Warrior model boasts increased power and a fully compliant EU5 standard engine, with a brushed copper alternator within that produces a steady motor speed.

It features a Automatic Voltage Regulator (AVR) control system to monitor the output and protect the unit against voltage fluctuations, providing a smoother sine wave.

Enclosed by a soundproof canopy, coated with a chip resistant matt finish, the durable heavy-duty industrial frame provides full protection and aids portability. This silent enclosure has the added benefit of a key start facility and smooth running is further enhanced by the addition of anti-vibration mountings.

A fully fuelled 16 litre tank could easily achieve up to 12 hours running at around 50% load, making this Warrior generator ideal for all sorts of applications such as domestic supply, construction, catering and industrial use with for example power tools & lighting units. As a standby generator it is the perfect product during power cuts and outages, and is even supplied with an Automatic Transfer Switch (ATS) Input Port compatible with our ATS Panel to automatically start up the Generator when loss of power is detected & stop it when the mains supply is restored.

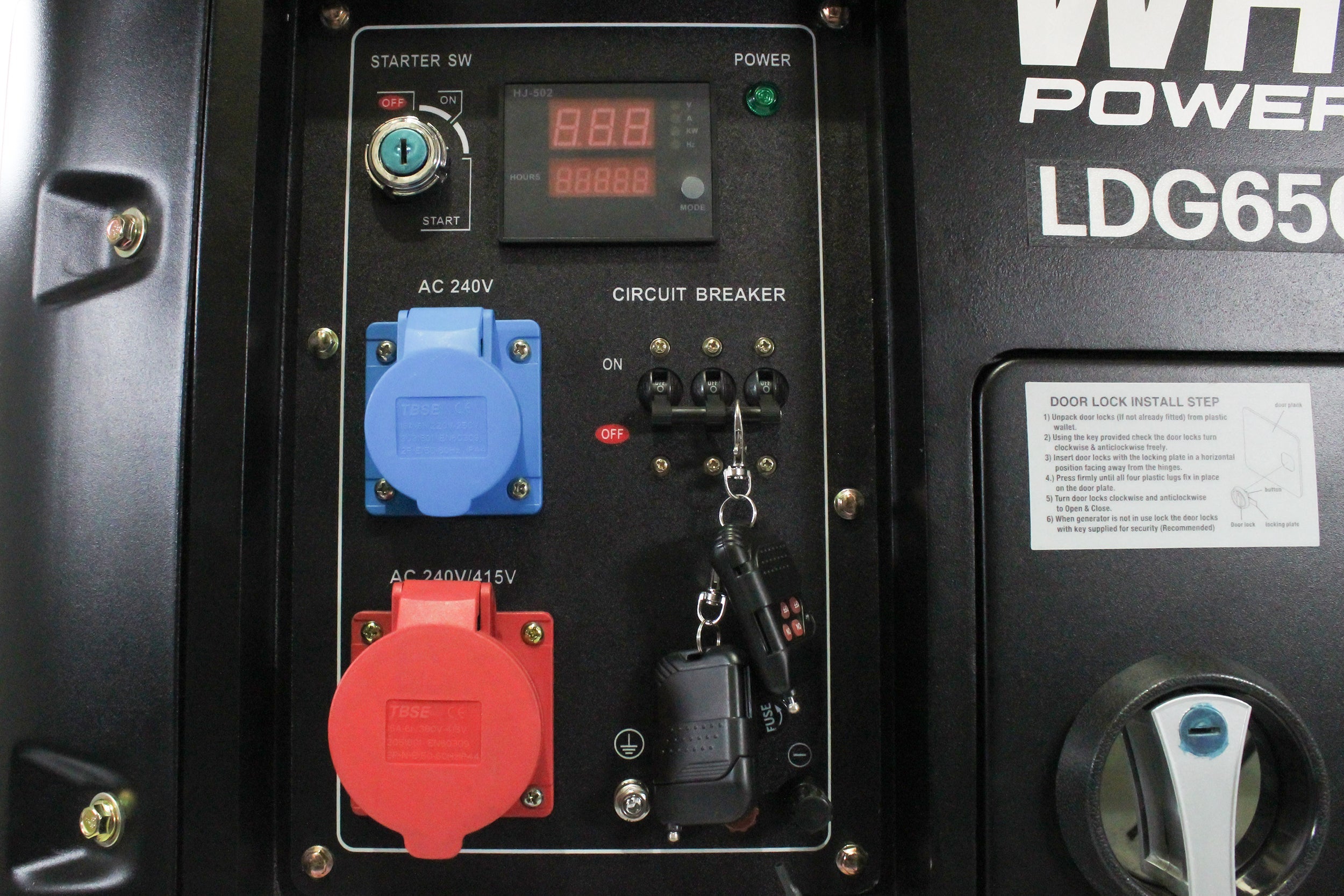

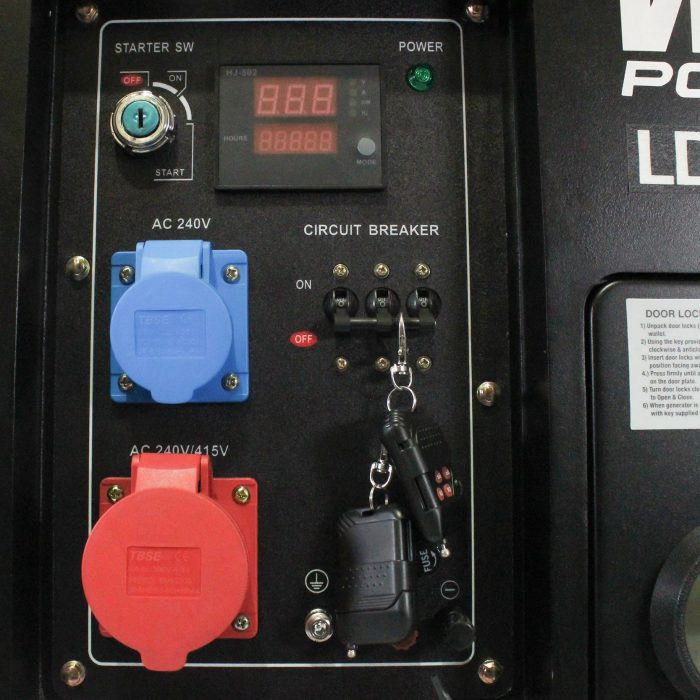

Fitted with 12v battery charging outlet and with 415v Three Phase and 240v Single Phase output sockets as standard as well as ATS Input Port for ATS panel 190102000010.

All data supplied on this item is referring to balanced load, if using unbalanced loads you need to check data on equipment.

Features:

• 415v Three Phase 240v AC load

  Up to 12 hours run time at 50% load

  68 dBA at 7m

  3 in 1 Intelli Volt Meter

  Electric Key Start

  Wheels for easy portability

  ATS Input Port

  Please note: When running single phase off a three phase generator you will only receive approx 30-35% of the full output power as your socket is only running off one of the three phases available.



  KVA		6.25
  Max Watts		5500
  Rated Watts		5000
  AC Load		1 x 415v 16A x 240v 16A
  Phase		3-phase
  Power factor		0.8
  RPM		3000
  Engine		186 cc Single Cylinder Air Cooled
  Fuel Capacity		16 Litres
  Oil Capacity		1.1 Litres
  Start Type		Electric Key Start
  Low Oil Shutoff		Automatic
  Noise Level @ 7m		68 dBA
  Dimensions L*W*H (Fully Assembled)		88 x 59 x 73 cm
  Weight		168 kg
  Operation at 50% Load		12 Hours
  Overload Protection		Yes
  Cold Start		No
  Parallel Connectivity		No
  Certification		CE,EC, EPA, EU Stage V
  Warranty		2 Year Limited Warranty
