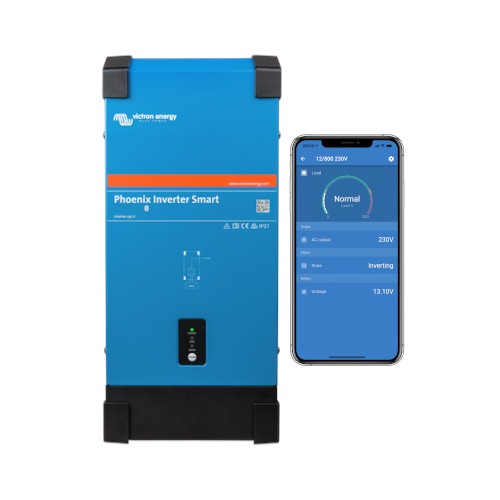

Victron Energy Phoenix Inverter 24 2000 230V Smart – PIN242201000 For Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.
Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.
Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.
Features of the Phoenix 24 2000 Smart
Bluetooth built-in: fully configurable with a tablet or smartphone
- Low battery voltage alarm
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage: 210 – 245V
- Frequency: 50 Hz or 60 Hz
- ECO mode on off and ECO mode sense level
- Alarm relay
-
- In- and output voltage, load and alarms
-
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote on off
A remote on off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
Control over system
Want to have perfect control over your system from wherever you are whilst using your Phoenix Inverter 24 1600 Smart, why not have a look at the CerboGX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Brand Victron Energy
Manufacturer Part Number PIN242201000
gtin 8719076057536
Voltage 24V
Cont. Output Power at 25ºC 2000VA
Peak Power 4000W
Output AC Voltage 230V
Efficiency 94%
Protection Category IP21
Dimensions H485 x W219 x D125mm
Weight 13Kg
Warranty 5 Years
Bluetooth Enabled Yes
Country of Manufacture China
Title Default Title
