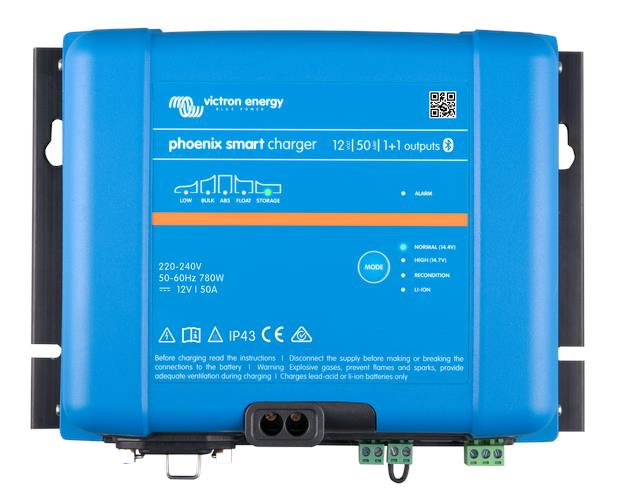

Victron Energy Phoenix Smart IP43 Charger 12 50(1+1) 230V – PSC125051085 For Discount

$151.11

26 people are viewing this right now
11 products sold in last 4 hours
Selling fast! Over 18 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Features

Bluetooth Smart enabled

Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.



Phoenix Smart (1+1): two outputs to charge 2 battery banks

The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.



Automatic voltage compensation

The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.



Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage

The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.



The right amount of charge: variable absorption time

When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.



Also charges Li-ion (LiFePO4) batteries

  • Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port.
  • Alternatively full control of voltage and current can be achieved with Bluetooth.

    •

      Fully programmable charge algorithm

      • The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface.
      • Three preprogrammed algorithms can be selected with the mode button (see specifications).

        •

          Remote on-off

          • The remote on off consists of two terminals: Remote H and Remote L.
          • A remote on off switch or relay contact can be connected between H and L.
          • Alternatively, terminal H can be pulled high, or terminal L can be pulled low.

            •

              VE.Direct interface

              • For a wired data connection to a Color Control panel, PC or other devices.
              • Please see the VictronConnect app under Downloads Software on our website.

                •

                  Programmable relay

                  Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events.

                  Brand

                  Victron Energy
                  Manufacturer Part Number

                  PSC125051085
                  Voltage

                  12V
                  Charger Current House Battery

                  50A
                  Low Current Mode

                  25A
                  Efficiency

                  92%
                  Outputs

                  1+1
                  IP Rating

                  IP43 (electronic components), IP22 (connection area)
                  Dimensions

                  H180 x W249 x D100mm
                  Weight

                  3.5Kg
                  Warranty

                  5 Years
