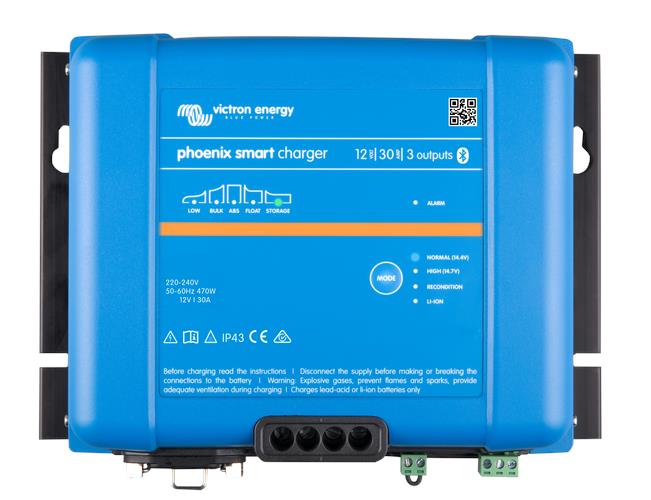

Victron Energy Phoenix Smart IP43 Charger 12 30(3) 230V – PSC123053085 For Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Features
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Phoenix Smart (3): three full current outputs to charge 3 battery banks
Each output can supply the full rated output current. But the total of the 3 outputs combined can never exceed the current rating of the charger.
Automatic voltage compensation
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.
Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.
The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.
Also charges Li-ion (LiFePO4) batteries
- Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port.
- Alternatively full control of voltage and current can be achieved with Bluetooth.
- The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface.
- Three preprogrammed algorithms can be selected with the mode button (see specifications).
- The remote on off consists of two terminals: Remote H and Remote L.
- A remote on off switch or relay contact can be connected between H and L.
- Alternatively, terminal H can be pulled high, or terminal L can be pulled low.
- For a wired data connection to a Color Control panel, PC or other devices.
- Please see the VictronConnect app under Downloads Software on our website.
Programmable relay
Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events.
Brand Victron Energy
Manufacturer Part Number PSC123053085
Voltage 12V
Charger Current House Battery 30A
Low Current Mode 15A
Efficiency 94%
Outputs 3
IP Rating IP43 (electronic components), IP22 (connection area)
Dimensions H180 x W249 x D100mm
Weight 3.5Kg
Warranty 5 Years
Title Default Title
Related products
Review Cart
Victron Energy Phoenix Smart IP43 Charger 12 30(3) 230V – PSC123053085 For Sale$133Select optionsVictron Energy Phoenix Smart IP43 Charger 12 30(3) 230V – PSC123053085 For Sale$133Select options
VE.Direct interface
Remote on-off
Fully programmable charge algorithm
