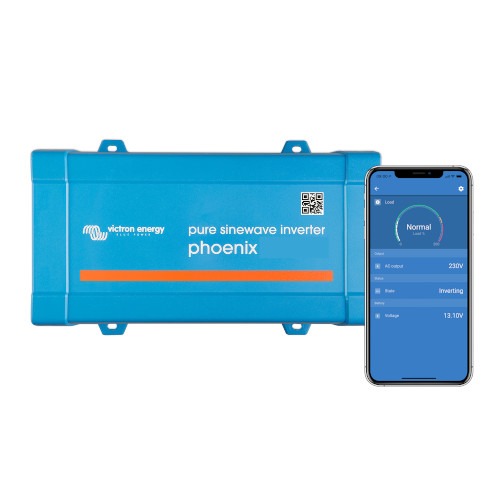

Victron Energy Phoenix Inverter 48 800 230V VE.Direct UK – PIN481801400 Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Features of the Phoenix Inverter 48 800 VE.Direct
VE.Direct communication port
The VE.Direct port can be connected to:
- A computer (VE.Direct to USB interface cable needed)
- Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage 210 – 245V
- Frequency 50 Hz or 60 Hz
- ECO mode on off and ECO mode sense level
- In- and output voltage, % load and alarms
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote on off
A remote on off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.
DC connection with screw terminals
No special tools needed for installation.
Brand Victron Energy
Manufacturer Part Number PIN481801400
gtin 8719076056898
Voltage 48V
Cont. Output Power at 25ºC 800VA
Peak Power 1500W
Output AC Voltage 230V
Efficiency 91%
Protection Category IP21
Dimensions H105 x W216 x D305mm
Weight 5.5Kg
Warranty 5 Years
Bluetooth Enabled No
Plug Type UK
Country of Manufacture China
