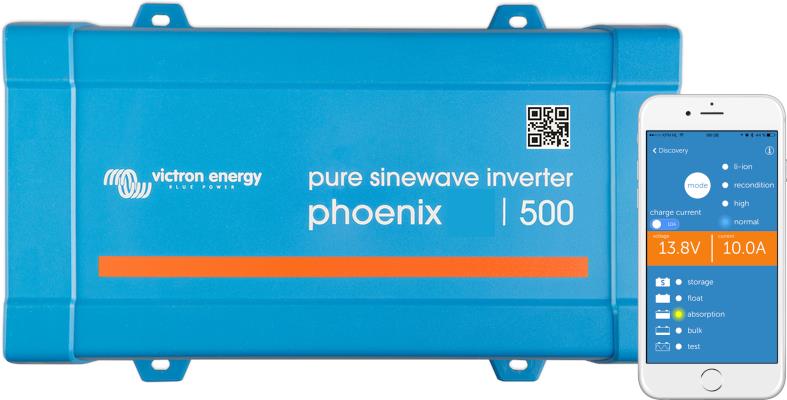

Victron Energy Phoenix Inverter 24 500 VE.Direct UK – PIN245010400 Sale

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

• Fully configurable:

  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off: load dependent cut-off level
  • Output voltage 210 – 245V
  • Frequency 50 Hz or 60 Hz
  • ECO mode on off and ECO mode sense level

  • Monitoring:

    • In- and output voltage, % load and alarms

    • Proven reliability

      The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

      High start-up power

      Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

      ECO mode

      When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

      Remote on off

      A remote on off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

      DC connection with screw terminals

      No special tools needed for installation.

      Brand		Victron Energy
      Manufacturer Part Number		PIN245010400
      Voltage		24
      VA		500
      Peak Power (W)		900
      Max Efficiency		90%
      Plug Type		UK
      IP Rating		IP21
      Dimensions (Including Terminals)		H86 x W172 x D275mm
      Weight (kg)		3.9
      Warranty		5 Years
      Country of Manufacture		India

      Title	Default Title
