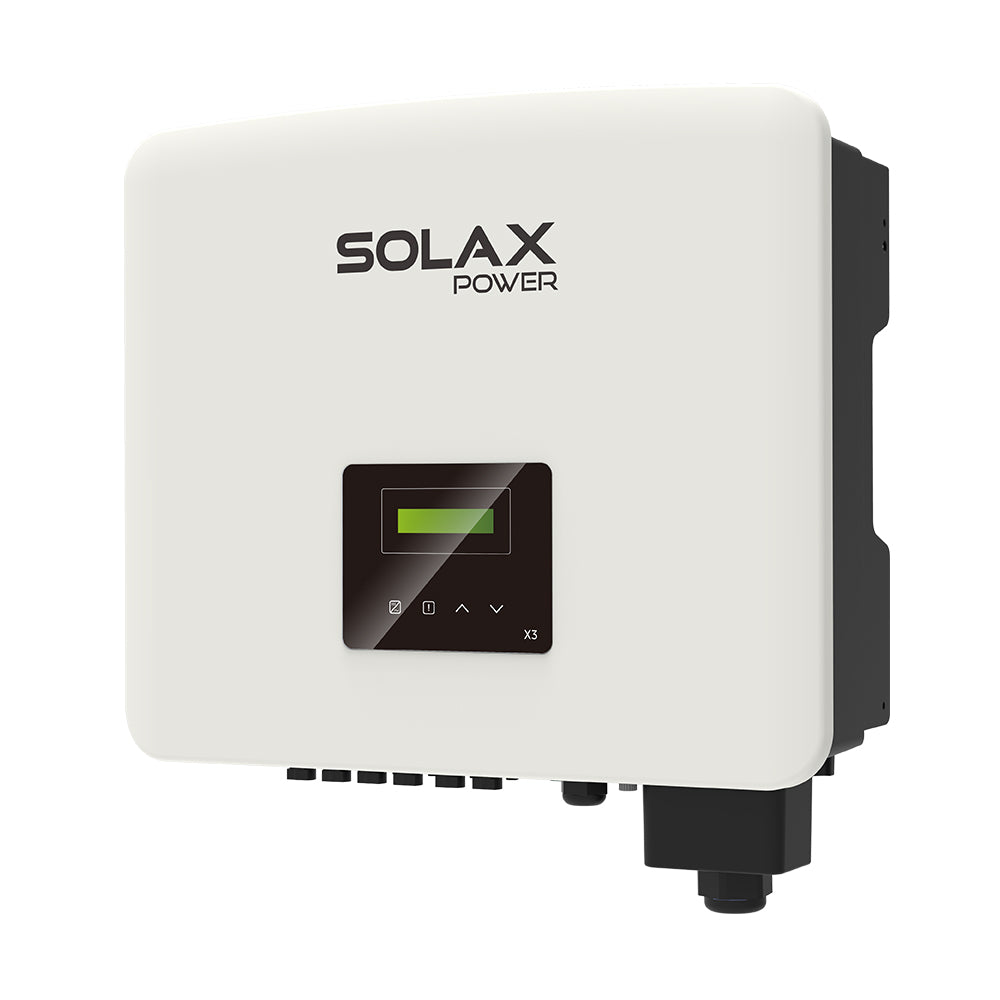

SolaX X3 Pro 3 Phase Inverter 25kW G2 Online Sale
20 people are viewing this right now
15 products sold in last 2 hours
Selling fast! Over 17 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: X3-PRO-25KÂ Inverters – Main Units
- Rating: 25,000W
- Phases: 3
- Maximum effiÂciency is up to 98.5%
- Low start up voltage, ultrawide MPPT voltage range
- 150% oversizing, 110% overloading output
- Built-in shadow tracking function
-
- SPD type II protection both AC&DC
- ARC protection (Optional)
- IP66 protection
-
- Built-in export power control
- Intelligent load management – heat pump (Optional)
- 24 hours operation monitoring
- Multiple monitoring methods, Pocket WiFi LAN 4G (Optional)
-
- Ultra-high power density
- Maximum 16A DC input current, support high power solar panel
- Up to 3 MPPTs, 2 strings per MPPT
-
When installing under G100 there is a requirement to install Solax Chint Three Phase Meter to be compliant.
Â
Supplier Part No: X3 PRO 25kW G2
Weight: 28 kg
Rated Power: 25,000 W
Min PPT Voltage: 200 V
Max PPT Voltage: 960 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 180 V
Max Input Voltage: 1,000 V
Max DC Power: 37,500 W
Max AC Power (5 Minutes): 25,000 W
Surge AC Power (1 Second): 27,500 W
Max DC Current: 32 A
Max DC Inputs: 0
Has DC Fuses: 0
Connector: MC4 Â
Included Connectors: 6
Euro Efficiency: 98 %
Transformer: None
MPPT Quantity : 6
Has Integrated DC Switch: No
Warranty: 10 years
